C0975-092-2000-M 2-Pack
$25.00
VEHICLE PARTS
COMPRESSION SPRING
AAXIS PART#: T7830135
SOLD IN QUANTITIES OF 5
Features:
- OUTSIDE DIAMETER: 0.975 IN
- FREE LENGTH: 2.000 IN
- SPRING RATE: 27 LBS/IN
- MAX LOAD: 22.3 LBS
Product Information

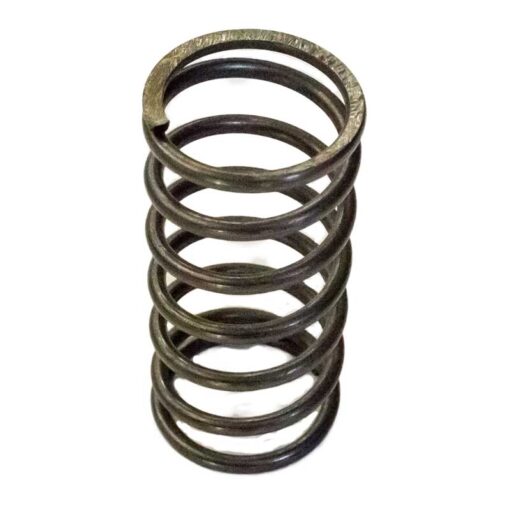

C0975-092-2000-M Compression Spring
SOLD IN QUANTITIES OF 5
The C0975-092-2000-M compression spring has an outside diameter of 0.975 inches, a free length of 2.000 in, and a wire diameter of 0.092 in.
Specifications
| Weight | 0.19 lbs |
|---|---|
| Dimensions | 2 × 1 × 1 in |
| Access Restriction | ""link"":""none""} |
| A | ""link"":""post""} |
| Actuator Type | bgcolor"":""""}" |
| Category | Vehicle Parts |
| Type | Compression Spring |
| Outside Diameter | 0.9750 in, 24.77 mm |
| Wire Size | 0.092 in, 2.34 mm |
| Free Length | 2.000 in, 50.80 mm |
| Spring Rate | 27 lbs/in |
| Max Work Load | 22.3 lbs |
| Solid Height | 0.73 in, 18.54 mm |
| Material | Music Wire |
