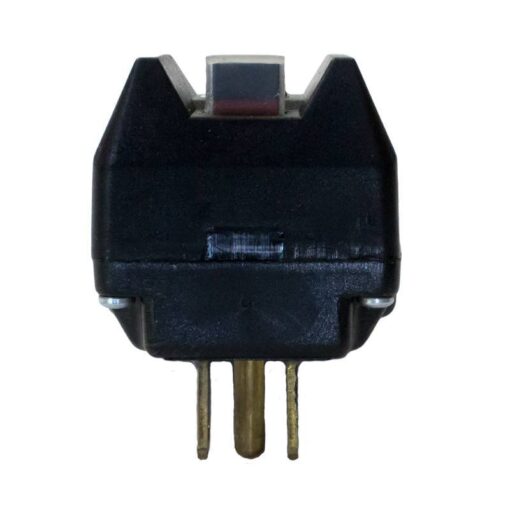

The GFCI user attachable plug is ideal for existing equipment without GFCI protection, the male connector can be removed and the GFCI plug easily attached to equipment’s cord.
GFCI is rainproof rated, UL listed for outdoor use. To prevent unmonitored equipment startup, manual reset is required after GFCI trip and power outage. Allows compliance with National Electric Code (NEC 2008) Article 590.6 for “Temporary Installations” and OSHA regulation.
Aaxis# 7376002568
| Weight | 0.5 lbs |
|---|---|
| Dimensions | 4 × 4 × 4 in |
| Access Restriction | ""link"":""none""} |
| Actuator Type | bgcolor"":""""}" |
| Endurance | 3,000 operations minimum |
| Category | Electronics |
| Type | GFCI User Attachable Plug |
| Grouned Neutral | 4 Ohms typical |
| Trip Response Time for Ground Gaul and Grounded Neutral Trip | less than 25 mS |
| Voltage Surge Withstand | 3kv ringwave test and 4kv/2kA surge immunity test |
| Radio Frequency Noise Susceptibility | Operates within normal limits with 0.5 volts injected on power line 150kHz-230mHz |
| Frequency | 50 / 60 Hz |
| Overload Current | Six times rated current |
| Operating Temperature Range | -35 °C to 66 °C |
| Effect of 10A turn DC Shock on Ground Fault Trip | 5% maximum trip level variation |
| Insulation voltage | 1500 VRMS – 1 Min. |
| Power On Indication | Mechanical Indicator |
